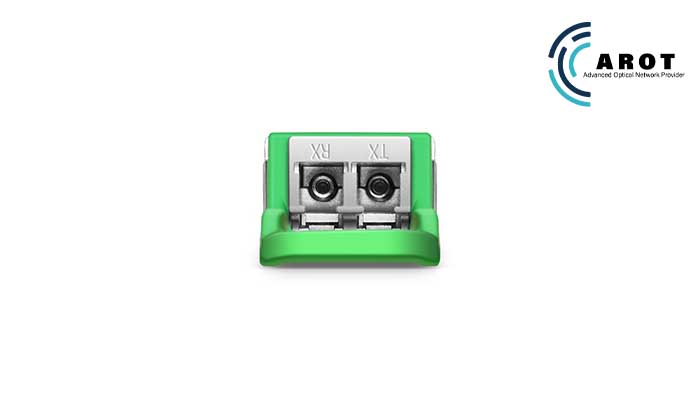

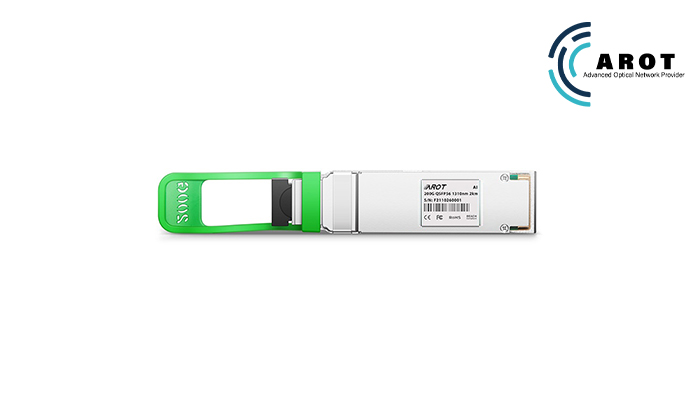

Q56-200G-FR4 Compatible 200GBASE-FR4 QSFP56 1310nm 2km DOM Duplex LC SMF Optical Transceiver Module
QSFP-200G-FR4 Compatible QSFP56 Transceiver Module is designed for 200GBASE Ethernet throughput up to 2km over single-mode fiber (SMF) using a wavelength of 1295nm to 1309nm with duplex LC connectors.
This transceiver is compliant with IEEE 802.3cd, IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8024, and SFF-8679 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 200G Ethernet, Data Center, and Cloud Networks.
Compatible Brand
Product Details
Product Highlights:
Built-in Oclaro Chip, Max. Power Consumption 6.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Hot Pluggable QSFP56 Form Factor
High-speed Electrical Compliant to IEEE 802.3bs and IEEE 802.3cd
Compliant with QSFP56 MSA CMIS V4.0
4x50G PAM4 Retimed 200GAUI-4 Electrical Interface
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Class 1 FDA Laser Safety
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
