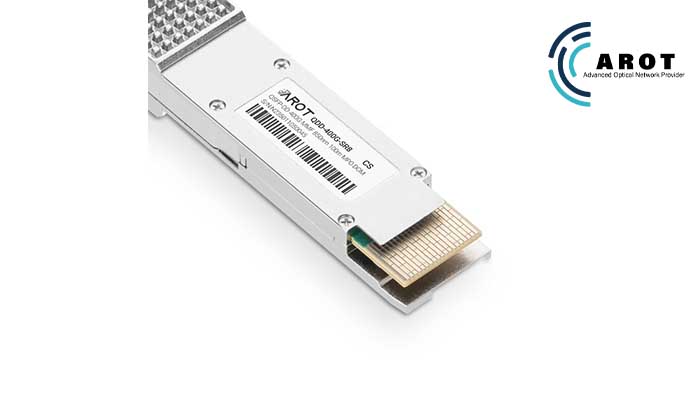

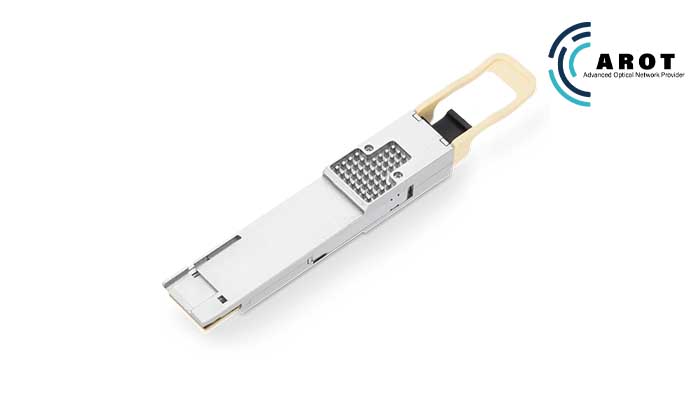

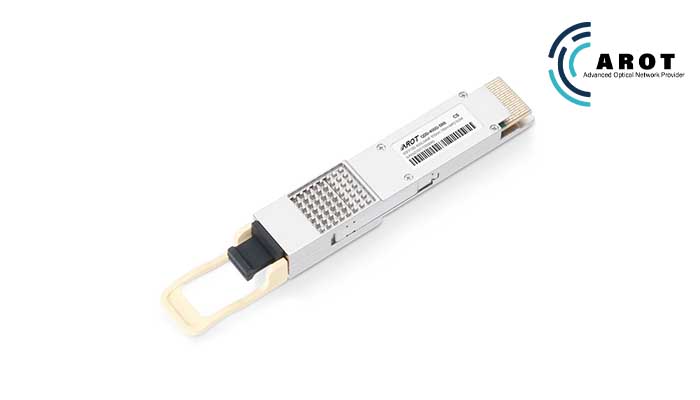

QDD-400G-SR8 Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM MTP/MPO-16 MMF Optical Transceiver Module
The QDD-400G-SR8 compatible 400GBASE-SR8 module supports link lengths of up to 100m over multimode fiber (MMF) with MTP/MPO-16 connector. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard. The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device.
Compatible Brand
Product Details
Product Highlights:
Built-in Inphi DSP Chip, Max. Power Consumption 10W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Compliant with QSFP-DD MSA CMIS Rev4.0, OIF 56G PAM4
Hot Pluggable QSFP-DD Form Factor
High-speed Electrical Compliant to IEEE 802.3cd
8x50G PAM4 Retimed 400GAUI-8 Electrical Interface
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
