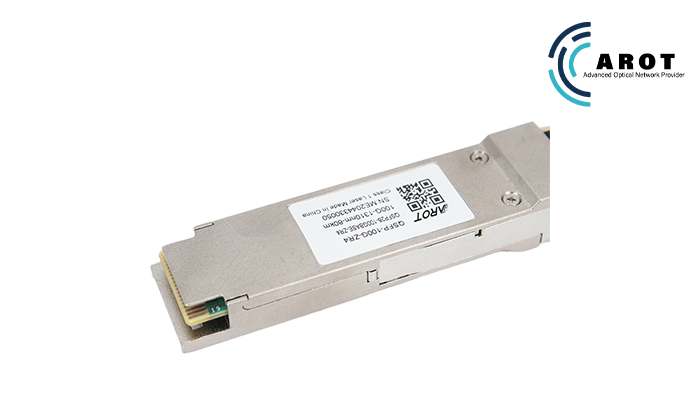

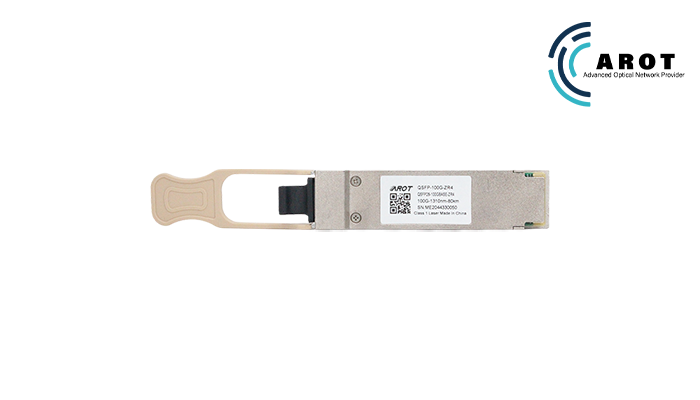

QSFP-100G-ZR4 Compatible 100GBASE-ZR4 QSFP28 1310nm 80km DOM Duplex LC SMF Optical Transceiver Module
The QSFP-100G-ZR4 compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 80km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, telecom and data center.
Compatible Brand
Product Details
Product Highlights:
Adopt Box Hermetic Packaging with Reliable Airtightness, Verified by Sulfur Fumigation & Gas Corrosion Tests
High Transmission Margin to Compensate for Link Loss Caused by Aging Fiber Optic Cables
Max. Power Consumption 6W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Integrated Soa Enables Up to 80km Reach Without Requiring an External Amplifier
Hot Pluggable QSFP28 MSA Compliant
High-Speed Electrical Interface Compliant to IEEE 802.3bm
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
